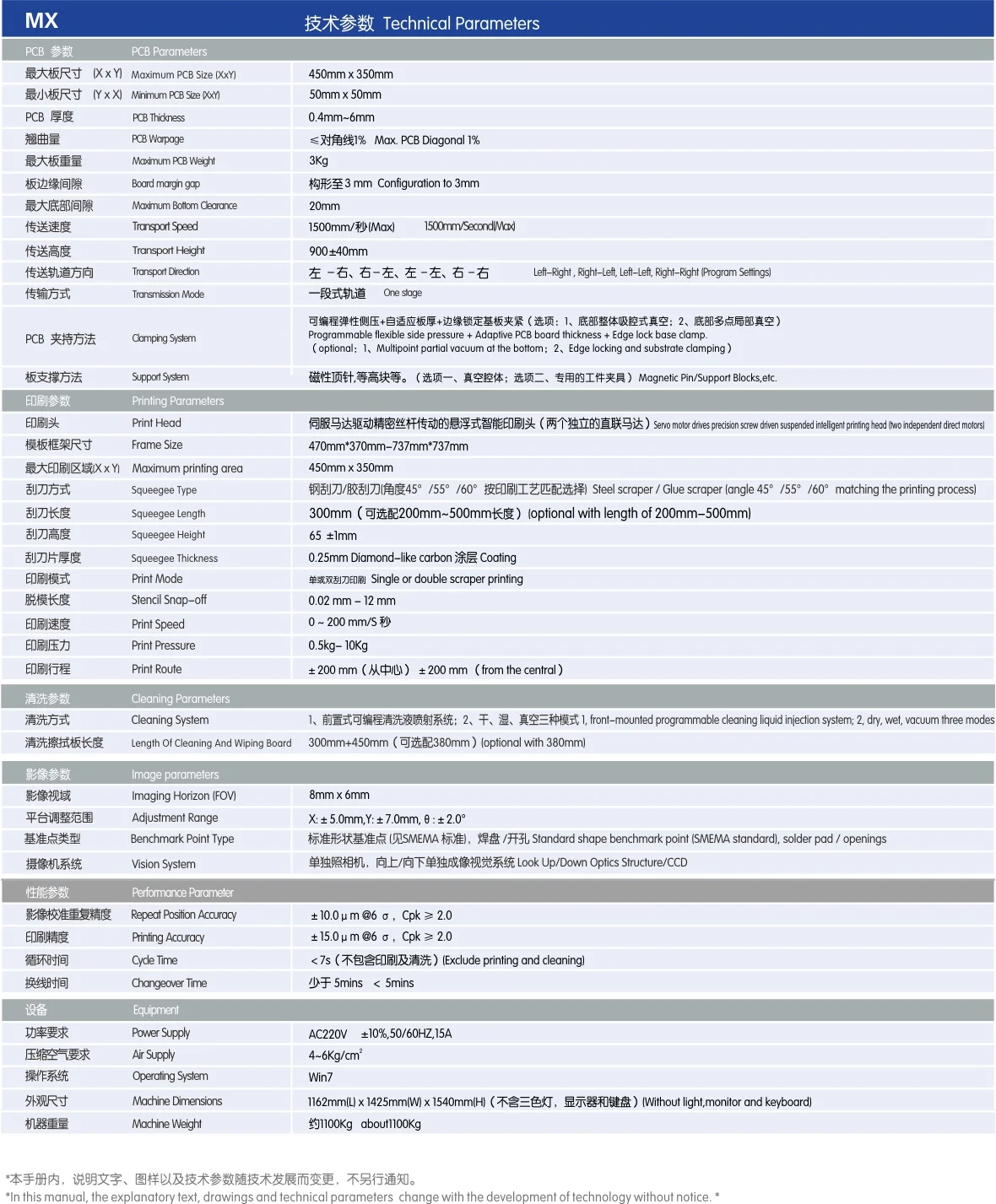

Alignment accuracy: ± 10.0 micron/micron @ 6 σ, Cp ≥ 2.0
Printing accuracy: ± 15.0 micron/micron @ 6 σ, Cp ≥ 2.0

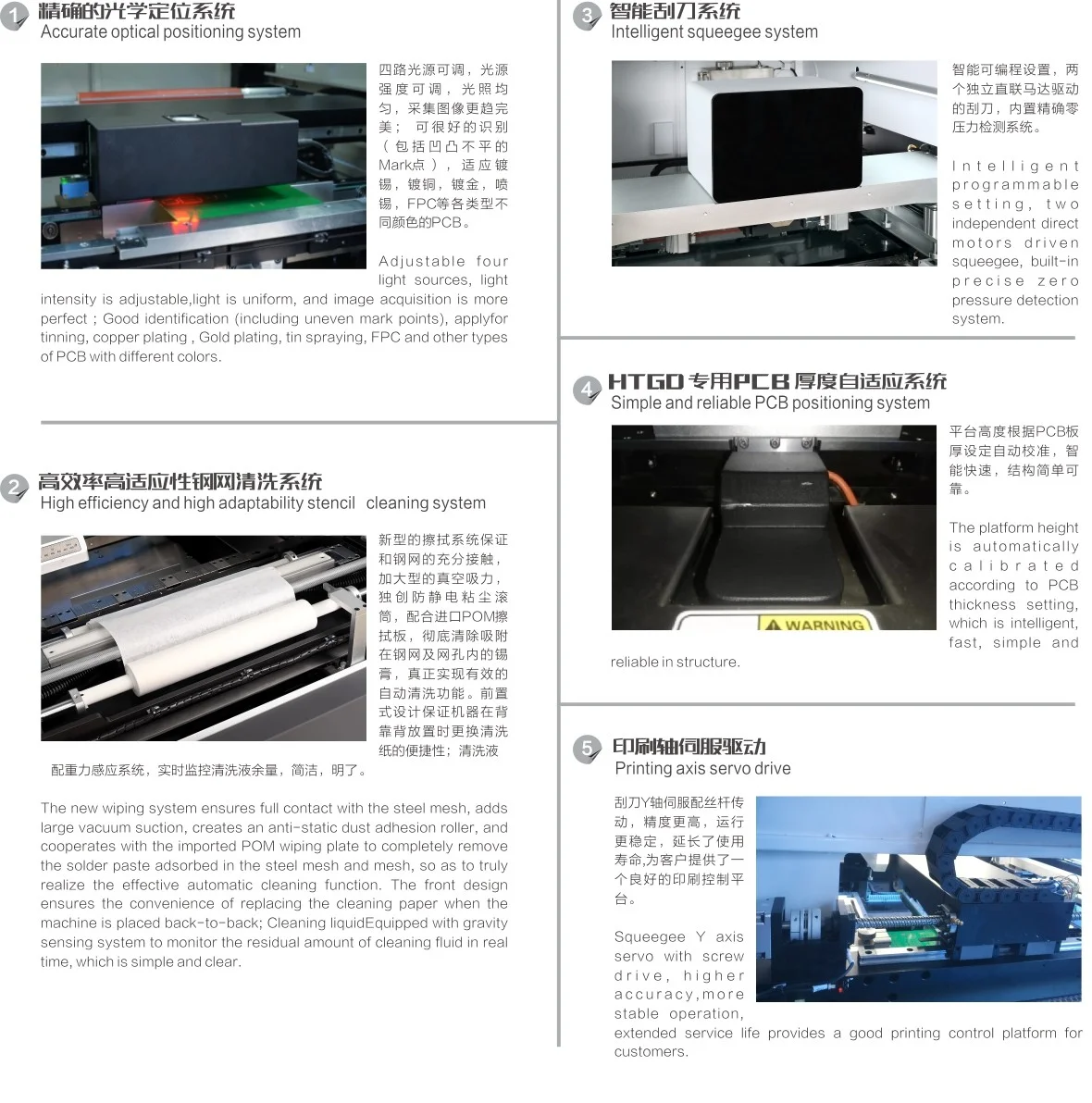

MX has a simple and reliable structure, precise positioning, and easy adjustment, which can quickly achieve automatic adjustment of the lifting height of PIN pins on PCB boards of different thicknesses; The atomizing nozzle evenly sprays the cleaning solution onto the wiping paper, and the arc-shaped rubber wiping plate is soft, wear-resistant, and corrosion-resistant, with strong bi-directional vacuum cleaning thoroughly. The length of the wiping paper tube can be adjusted from 250mm to 450mm, and can achieve functions such as dry cleaning, wet wiping, wet washing, and reciprocating cleaning.
