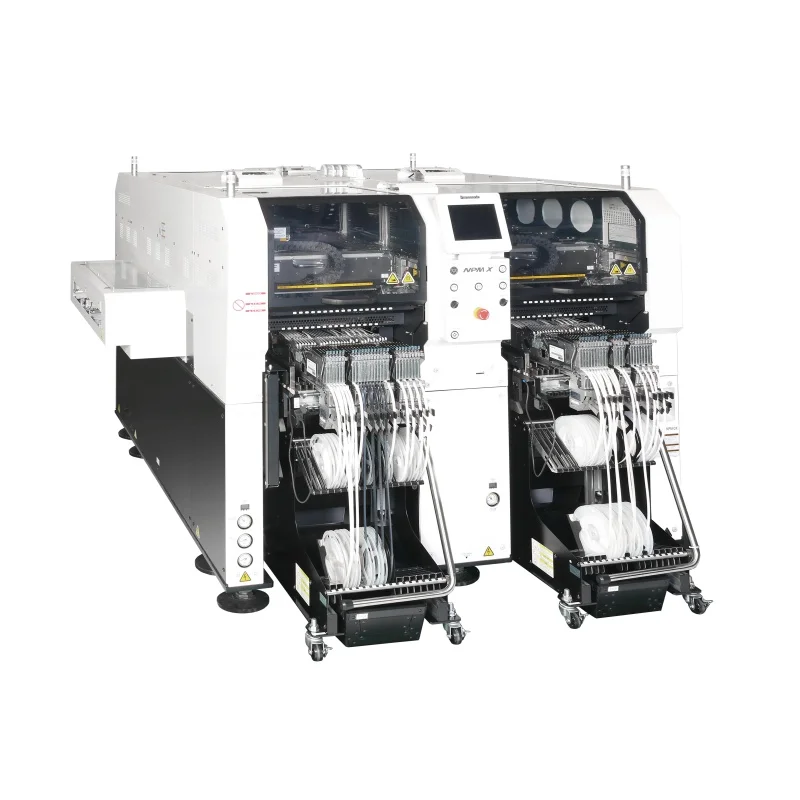

The NPM-DX is Panasonic's next generation of X-Series mounting production concept for Smart manufacturing. The NPM-DX boasts a stable operation based on the autonomic function, Autonomous Line Control, allowing for APC system and automatic recovery option.
Realize reduced labor and improved utilization with the Concentrated control feature. This enables floor management system and available remote operation option. Reduced your work variations with improved navigation and automated items such as feeder setup navigation and component supply navigation.
SKU
NM-EJM8D
Model ID
NPM-DX
Model No.
NM-EJM8D
PCB Dimensions (mm)
Single-lane mode: L 50 × W 50 ～ L 510 × W 590 Dual-lane mode: L 50 × W 50 ～ L 510 × W 300 *When the long spec. conveyor is selected
PCB Exchange Time
2.1 s ( L 275 mm or less) 4.8 s ( L 275 mm or over to L 460 mm or less) *When the short spec. conveyor is selected / May differ depending on PCB specifications
Electric Source
3-phase AC 200, 220, 380, 400, 420, 480 V 5.0 kVA
Pneumatic Source *
Min.0.5 MPa、200 L /min（A.N.R.) [*1]
Dimensions (mm) *
W 1,665 [*2] × D 2,570 mm [*3] × H 1,444 mm [*4]
Mass
3,600 kg (Only for main body : This differs depending on the option configuration.
