The NPM-TT2 (Next Production Modular-Twin Tray II) platform represents the next generation in twin tray modular production from Panasonic’s award-winning NPM platform—ideal for any mix.
Further bolstering the SMT process to accommodate more tray-supplied parts in full independently-run-lane mode, the NPM-TT2 processes boards up to 510 x 590mm and its dual lane functionality allows assembly of more of one product or two different products at the same time.
Featuring an advanced lightweight 3-nozzle head V2 (100N), pin-in-place lighting option and stackable stick feeders, the NPM-TT2 leads the way in terms of odd-placement capabilities.

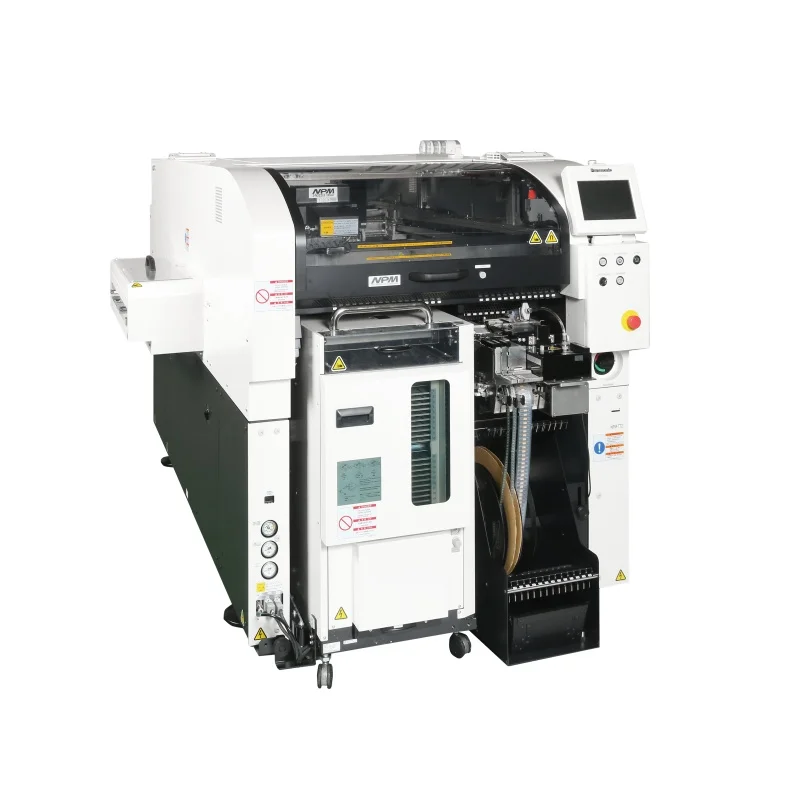

Panasonic NPM-TT2
SKU | NM-EJM1E |
|---|---|
Model ID | NPM-TT2 |
Model No. | NM-EJM1E |
PCB Dimensions (mm) | PC size |
PCB Dimensions (mm) | M size |
PCB Exchange Time | Single-lane mode: 4.0 s (With no component mounted on the reverse side of PCB) |
Electric Source | 3-phase AC 200, 220, 380, 400, 420, 480 V 2.5 kVA |
Pneumatic Source * | Min.0.5 MPa, 200 L /min (A.N.R.) |
Dimensions (mm) * | W 1,300 [*2] x D 2,798 [*3] x H 1,444 [*4] |
Mass | 2,690 kg |
