Model No.
NM-EJM7D
NM-EJM7D-A
NM-EJM7D-D
NM-EJM7D-MA
NM-EJM7D-MD
*See spec sheet for nozzle head configuration

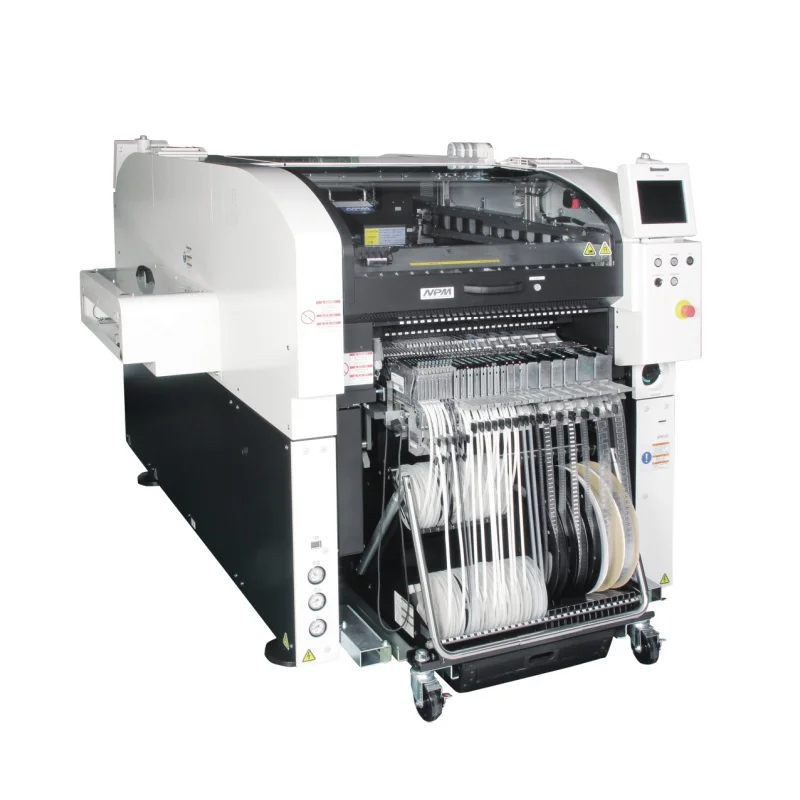

Panasonic NPM-W2 SMT Pick-and-Place Machine
NPM-W2 | |
|---|---|
Substrate size | Monorail conveyor belt Overall installation: L 50 mm × W50 mm~L 750 mm × W 550 mm Installation in 2 positions: L 50 mm × W50 mm~L 350 mm × W 550 mm Double track conveyor belt Dual track transmission (overall): L 50 mm × W50 mm~L 750 mm × W 260 mm Dual track transmission (2 positions): L 50 mm × W50 mm~L 350 mm × W 260 mm Monorail transmission (overall): L 50 mm × W50 mm~L 750 mm × W 510 mm Monorail transmission (2 positions): L 50 mm × W50 mm~L 350 mm × W 510 mm |
Maximum tempo (per mounting head) | 42000 cph (0.086 s/chip) 35000 cph (0.103 s/chip) |
Mounting accuracy (Cpk ≥ 1) | ± 40 μ m/chip ± 30 μ m/chip |
Corresponding to component size | 03015 chip~L 120 × W 90 × T 30/T 40 or L 150 × W 25 × T 30/T 40 |
Maximum number of components to be loaded (tape width: 4mm, 8mm calculation) | 120 varieties |
