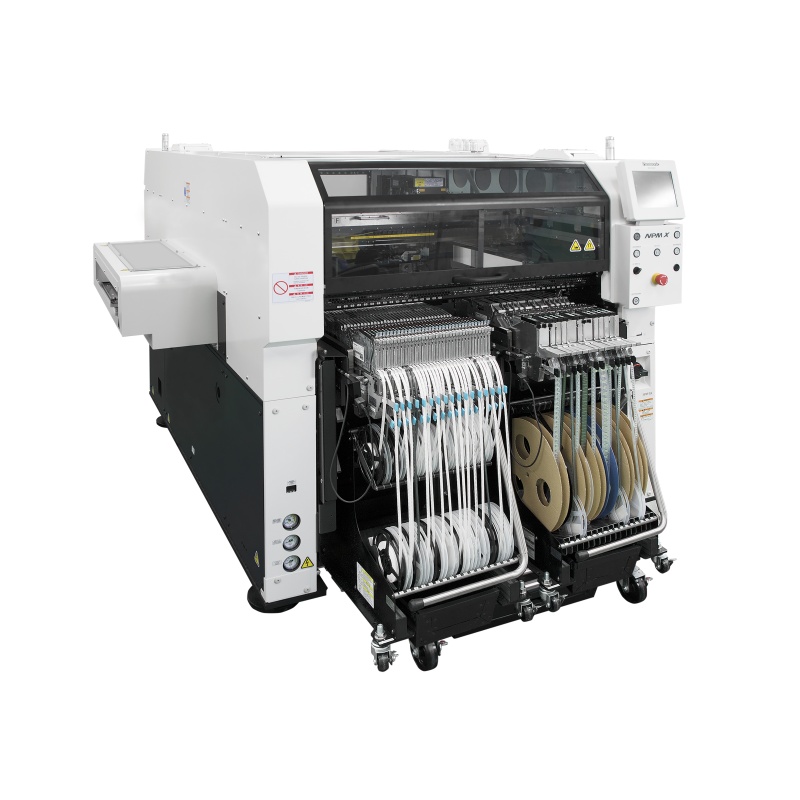

The NPM-WX single-beam variant is designed around a stiff frame, constructed of durable materials and built to last. With onboard dual-drive linear motors complimented by light and rigid beam architecture, the NPM-WX introduces new industry-leading options; Linear servo motors with dual-drive Y and High Resolution linear scales in each motor.
Unparalleled compatibility means the right placement heads that cater to your specific needs. With faster high voltage motor drives, higher precision Θ architecture and precisely forged stainless steel nozzles and adapters, the NPM-WX sets new industry standards for handling any mix and any volume.
SKU
NM-EJM9D
Model ID
NPM-WX
Model No.
NM-EJM9D
PCB Dimensions (mm)*
Single-lane Batch Mounting: L 50 × W 50 ～ L 750 × W 610 2-Position Mounting: L 50 × W 50 ～ L 350 × W 610
PCB Dimensions (mm)*
Dual-lane Dual transfer (Batch): L 50 × W 50 ~ L 750 × W 300 Dual transfer (2-position): L 50 × W 50 ~ L 350 × W 300 Single transfer (Batch): L 50 × W 50 ~ L 750 × W 590 Single transfer (2-position): L 50 × W 50 ~ L 350 × W 590
Electric Source
3-phase AC 200, 220, 380, 400, 420, 480 V 3.0 kVA
Pneumatic Source *
Min. 0.5 MPa, 200 L /min（A.N.R.) [*1]
Dimensions (mm) *
W 1,410 mm [*2] × D 2,570 mm [*3] × H 1,444 mm [*4]
Mass
2,740 kg (Only for main body : This differs depending on the option configuration.
