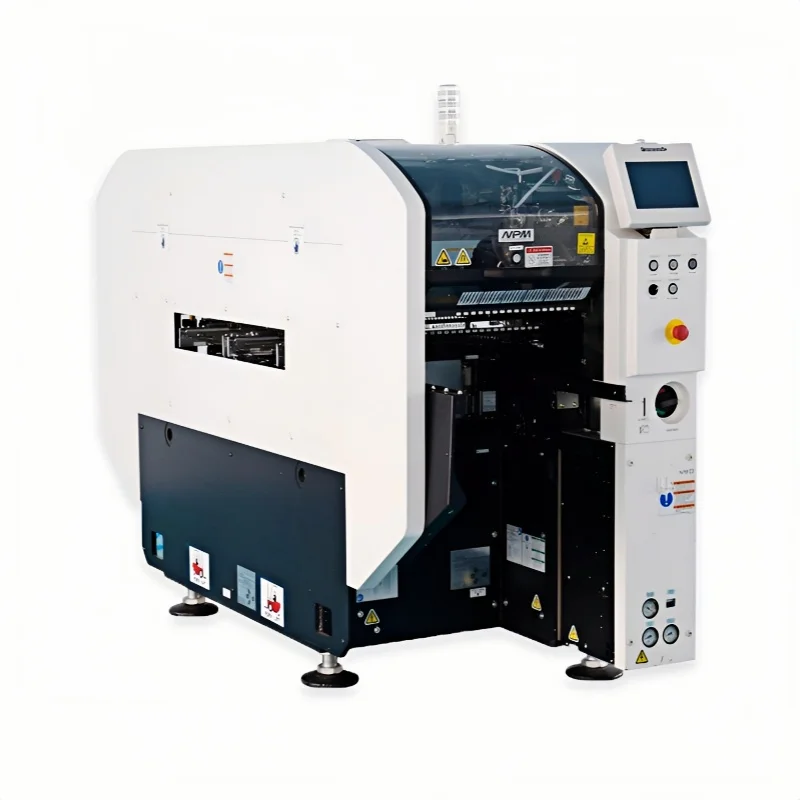

NPM-D3 SMT Placement Machine NM-EJM6E

Quality improvement

Mounting height control function

Based on the data of substrate bending state and the thickness of each component being mounted, the mounting height is controlled to the optimal value to improve the actual mounting quality.

Improve operational efficiency

Free configuration of feeder

If in the same workbench, the feeder can be freely configured.

During production, components can be alternately configured, and feeders for the next model of production can also be configured at the empty feeder slot.

Note: The support station (optional) requires pre input information for the feeder.

Item	Specification
Model	NPM‑D3
Rear‑side Working Head	Light‑weight / 12‑nozzle Placement Head / 8‑nozzle Placement Head / 2‑nozzle Placement Head / Dispensing Head / No Working Head
Front‑side Working Head	16‑nozzle Placement Head
Light‑weight 16‑nozzle Placement Head	NM‑EJM6D，NM‑EJM6D‑MD，NM‑EJM6D
Dispensing Head	NM‑EJM6D‑MD，~，NM‑EJM6D‑D
Inspection Head	NM‑EJM6D‑MD，~，NM‑EJM6D‑A
No Working Head	NM‑EJM6D，NM‑EJM6D‑D，~
Substrate Size*1 (mm) Dual‑rail	L 50 × W 50 ～ L 510 × W 300
Substrate Size*1 (mm) Single‑rail	L 50 × W 50 ～ L 510 × W 590
Substrate Exchange Time Dual‑rail	0 s* ※Cannot be 0 s when cycle time is 3.6 s or less
Substrate Exchange Time Single‑rail	3.6 s* ※When short‑specification conveyor is selected
Power Supply	Three‑phase AC 200, 220, 380, 400, 420, 480 V，2.7 kVA
Air Supply*2	0.5 MPa，100 L/min (A.N.R.)
Machine Dimensions(mm) *2	W 832 × D 2652 3 × H 1444 4
Weight	1680 kg（Main unit only；differs according to option configuration）

Placement Head Performance

Placement Head	Item	Specification
Light‑weight 16‑nozzle Placement Head	Max.Speed(High‑production Mode ON)	42000 cph (0.086 s/chip)
	Max.Speed(High‑production Mode OFF)	38000 cph (0.095 s/chip)
	Placement Accuracy(Cpk≧1)	±40 μm/chip（±25 μm/chip*5）
12‑nozzle Placement Head	Max.Speed	34500 cph (0.104 s/chip)
	Placement Accuracy(Cpk≧1)	±30 μm/chip，±30 μm/QFP（□12 mm～□32 mm）
	Component Size(mm)	0301567 / 0402 chip*6 ～ L 6 × W 6 × T 3
8‑nozzle Placement Head	Max.Speed	21500 cph (0.167 s/chip)
	Placement Accuracy(Cpk≧1)	±30 μm/chip，±50 μm/QFP（□12 mm and below）
	Component Size(mm)	0402 chip*6 ～ L 12 × W 12 × T 6.5
2‑nozzle Placement Head	Max.Speed Chip	5500 cph (0.327 s/chip)
	Max.Speed QFP	4250 cph (0.847 s/QFP)
	Placement Accuracy(Cpk≧1)	±30 μm/QFP
	Component Size(mm)	0402 chip*6 ～ L 32 × W 32 × T 12
Dispensing Head	Component Size(mm)	0603 chip ～ L 100 × W 90 × T 28

Component Feeding

Feeding Type	Specification
Tape（Light‑weight16‑nozzle head）	Tape width：4 / 8 / 12 / 16 / 24 / 32 / 44 / 56 mm；Max.68 types（4、8 mm tape, small reel）
Tape（Other heads）	Tape width：4‑56 / 72 / 88 / 104 mm
Stick	Max.16 types（Single‑type stick feeder）
Tray	Max.20 types（1 tray feeder）
