NM-EJM4D
The compact dual-beam NPM-D3A offers a reinforced frame, advanced head, and award-winning Multi Recognition Camera improve placement accuracy down to 30um, and capable achieving a maximum CPH of 92,000.
The NPM-D3 is an industry standard building block in high-speed, high volume applications ranging from automotive to industrial to medical. In fact, the vast majority of automotive EMS providers choose Panasonic Connect solutions.
SKU | NM-EJM4D |
|---|---|
Model ID | NPM-D3A |
Model No. | NM-EJM6E |
PCB Dimensions (mm)* | Dual-Lane Mode: L 50 × W50 ~ L 510 × W 300 |
PCB Exchange Time * | Dual-Lane Mode: 0s* *No 0s when cycle time is 3.6 s or less |
Electric Source | 3-phase AC 200, 220, 380, 400, 420, 480 V 2.7 kVA |
Pneumatic Source * | 0.5 MPa, 100 L /min (A.N.R.) |
Dimensions (mm) * | W 832 × D 2,652 [*3] × H 1,444 [*4] |
Mass | 1 680 kg (Only for main body : This differs depending on the option configuration.) |
PRODUCT ENQUIRY

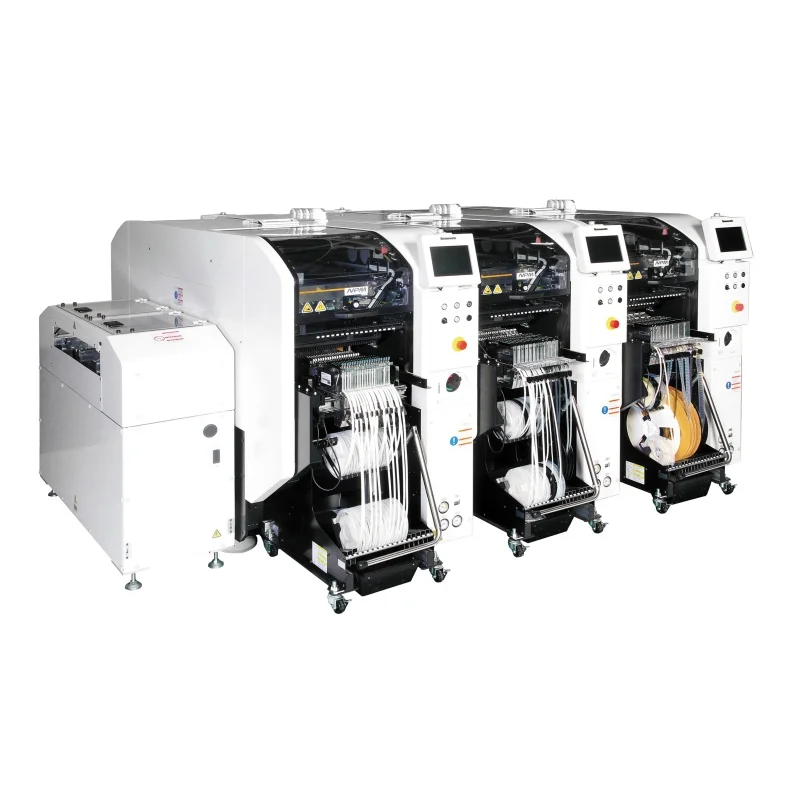

Panasonic NPM-D3A NM-EJM4D
